Honeycomb Board XY Cutter
Customized Models from Manual to Automatic …

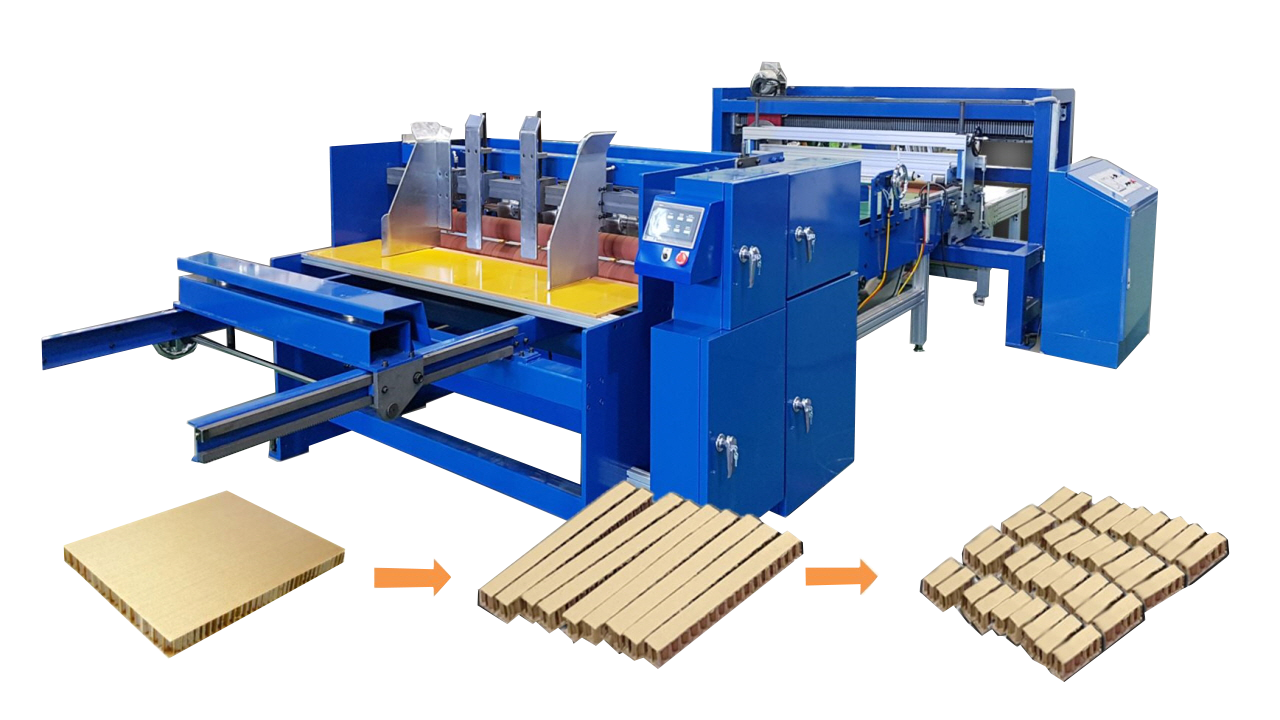

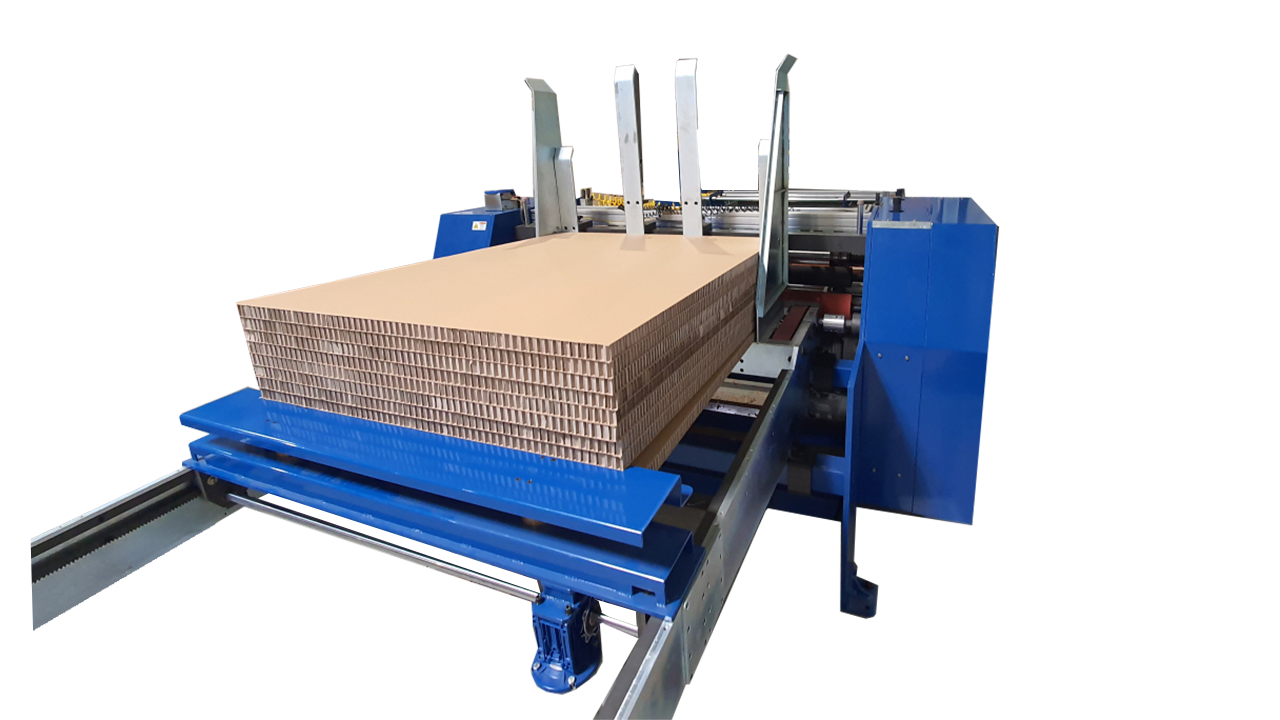

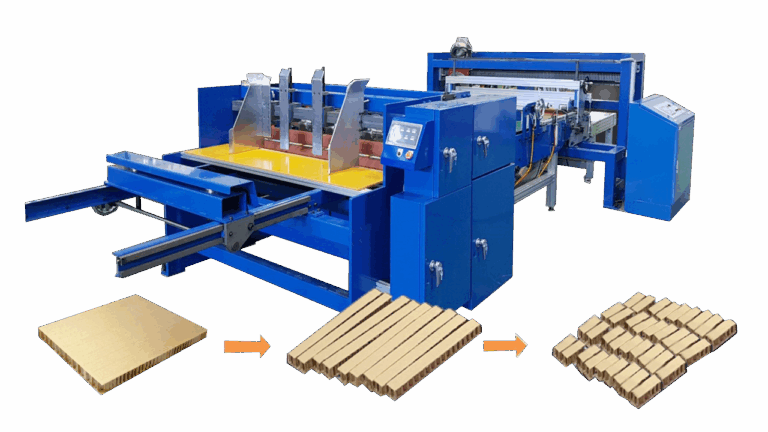

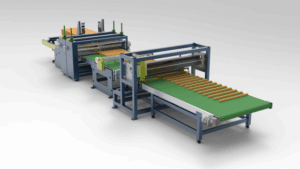

Honeycomb XY Cutter

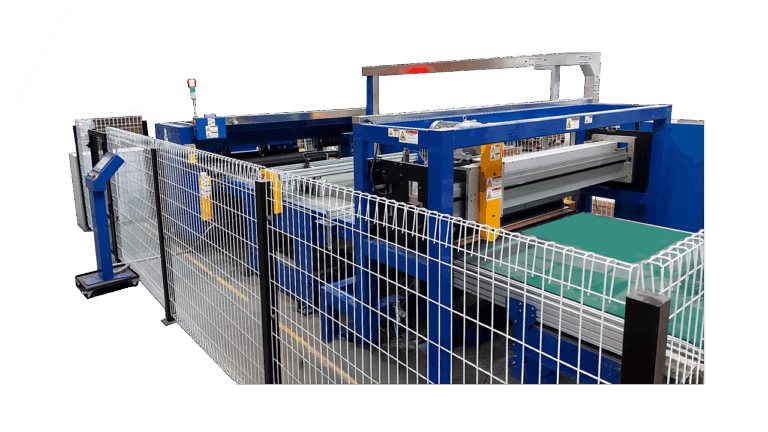

XY-1600 (62″)
General Specifications
- Working width: 1600mm (62″)
- Min. Length cut: 25mm (1.0″)
- Cutting speed : max. 16cuts
- Manual/Motorized belt feeder
- Manual/NC Slitting (X axis cut)
- Alignment unit & Stopper
- Servo cross cutting (Y axis cut)
- Wide range of options: Board feeder modifications,
NC Slitting, Min. Length cut modification, No. of slitter knives
Major Features
- X and Y axis cuts on honeycomb board—all in one machine
- Very useful for mass production such as pallet feet etc..
- Custom options available to meet special requirements

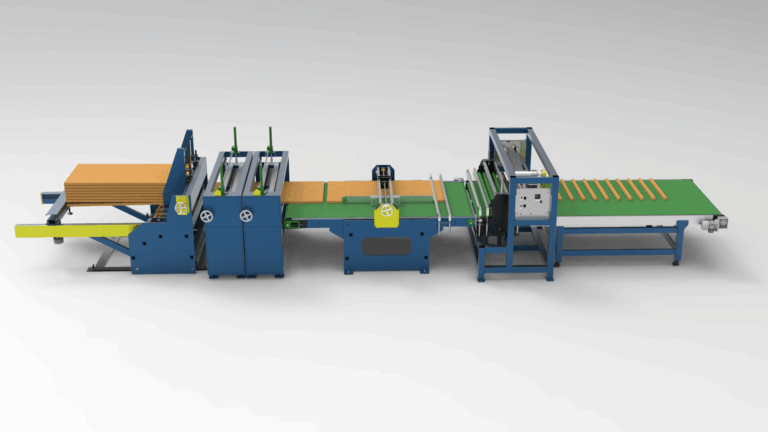

Process
- Board Feeding
- Slitting (X)
- Alignment
- Cross Cutting (Y)
- Delivery

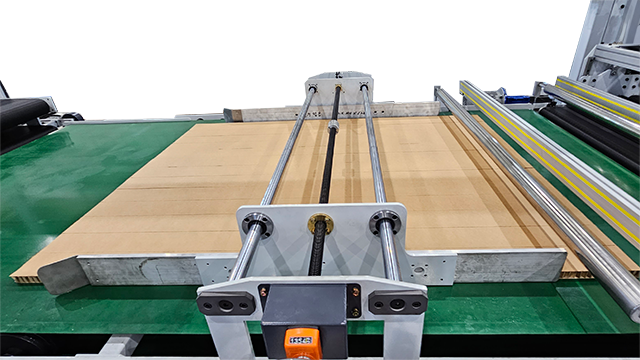

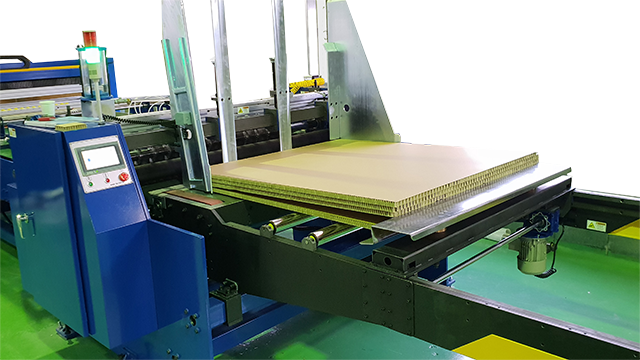

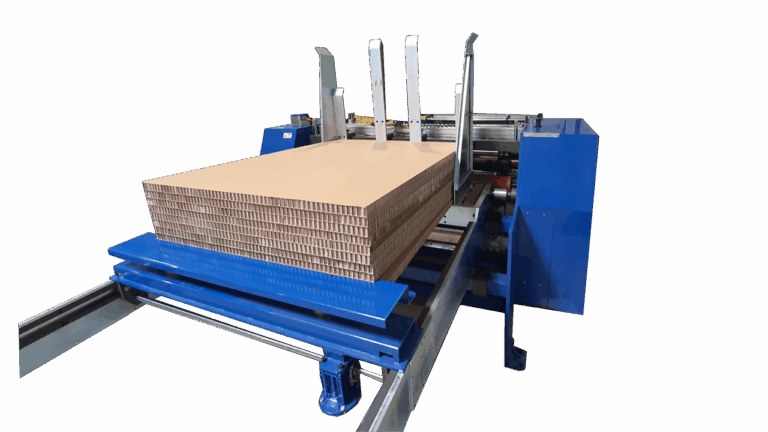

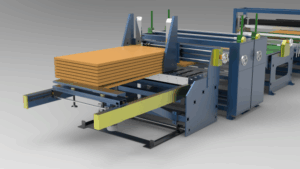

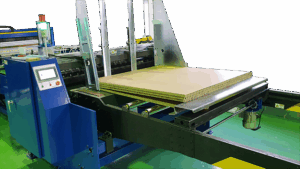

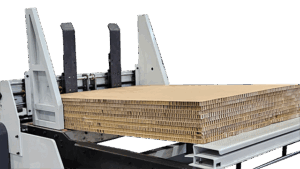

1. Board Feeding

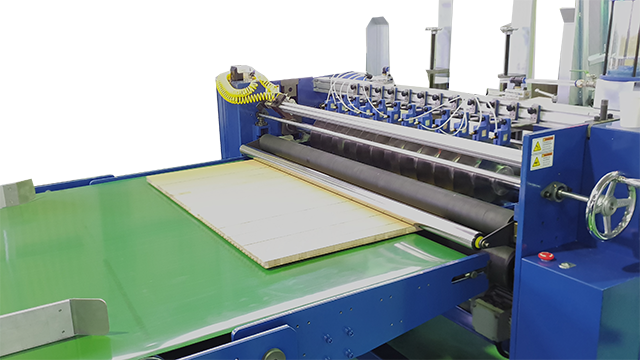

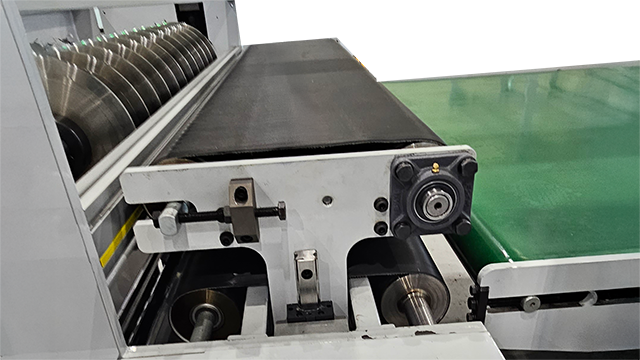

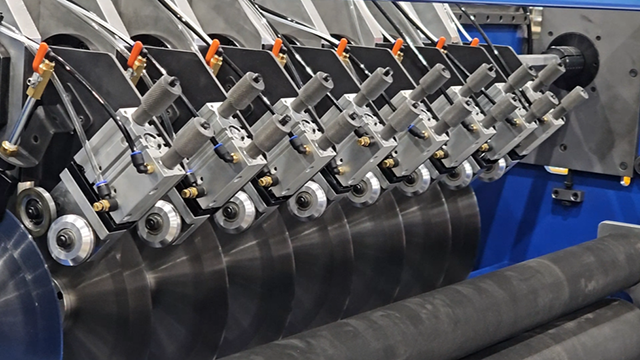

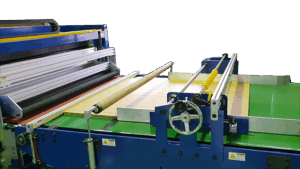

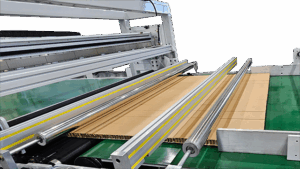

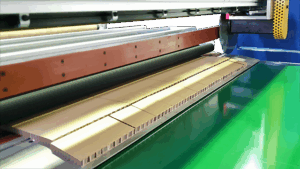

2. Board Slitting (X)

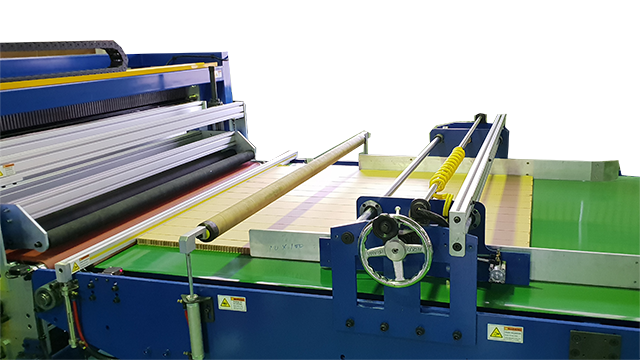

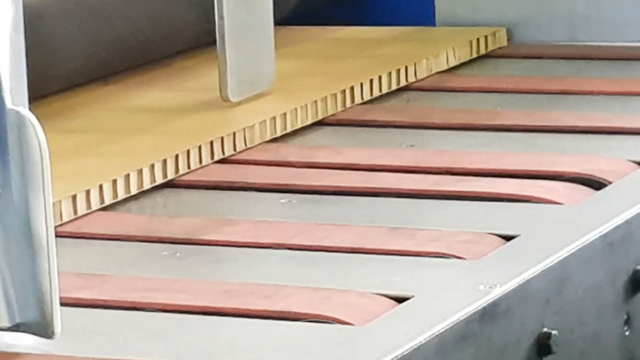

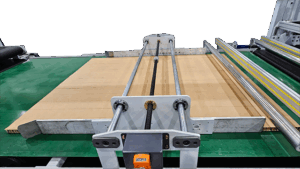

3. Alignment

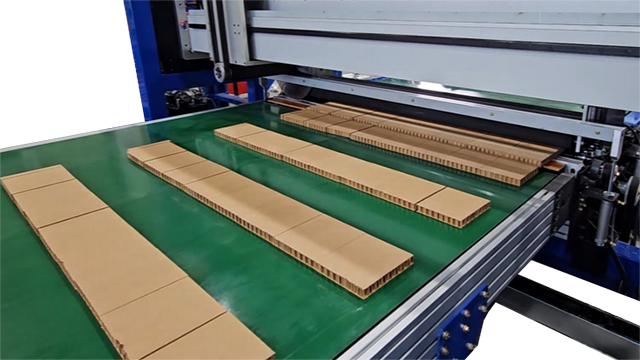

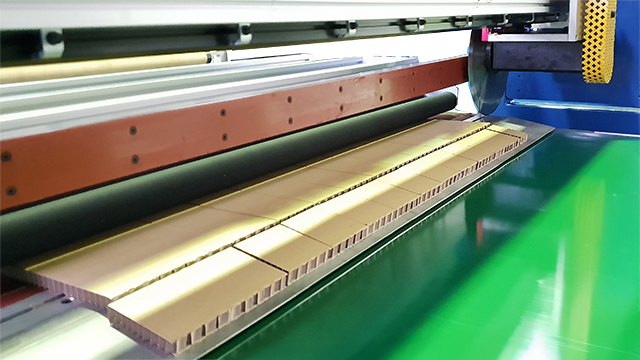

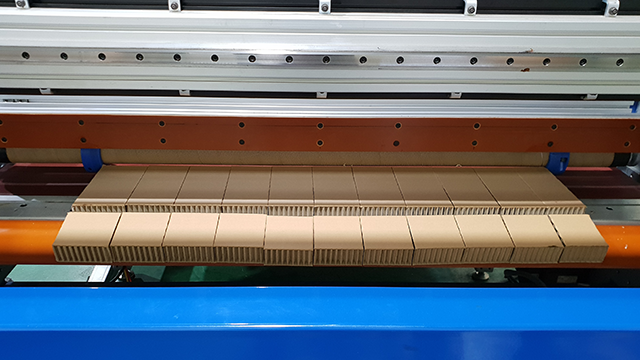

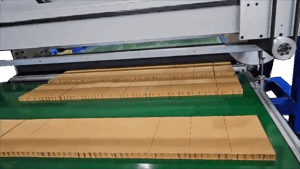

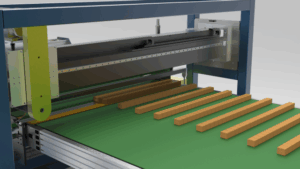

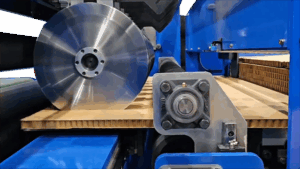

4. Cross Cutting (Y)

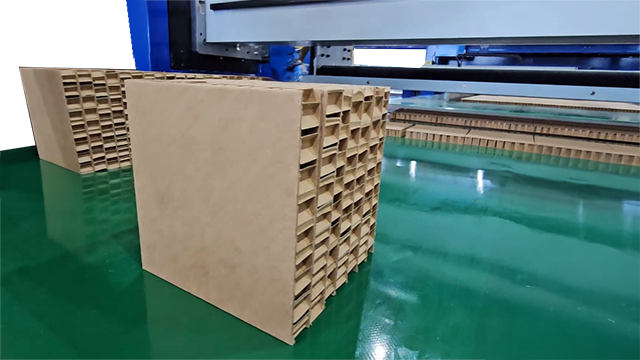

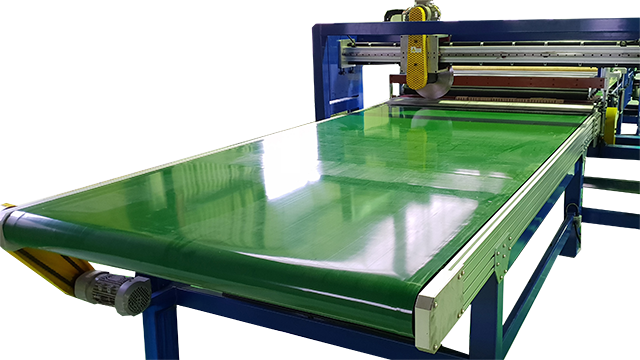

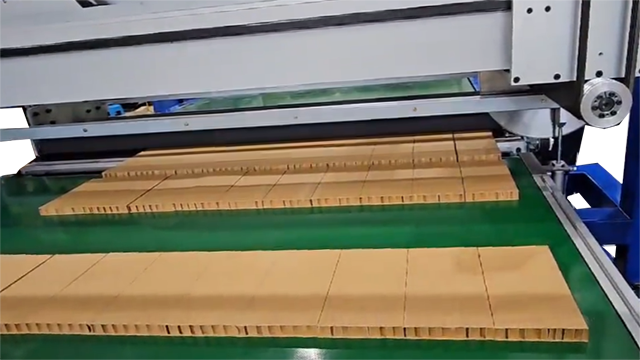

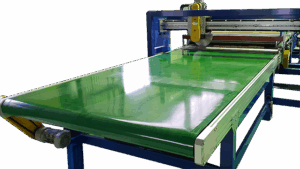

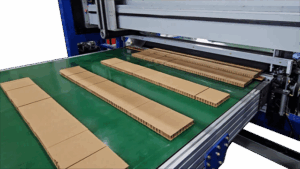

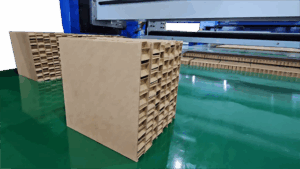

5. Delivering
Would you like to start a HONEYCOMB project with us?
TANTAN‘s innovative design was devised to
- Increase the efficiency of the critical daily operating task
- Reducing manpower, cost and time required each day…
- Ensuring smooth production start ups each morning without delays, etc.
Saving our customers money…
