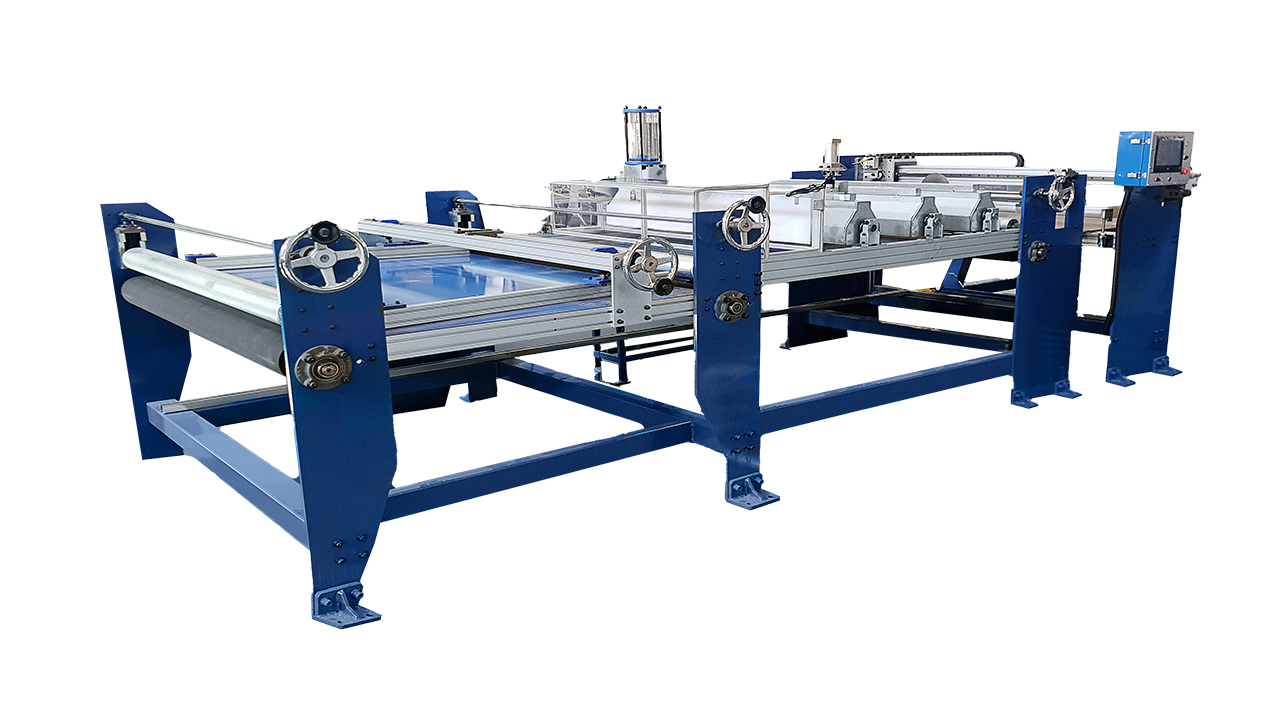

PAPER HONEYCOMB CORE EXPANDER & CUTTER

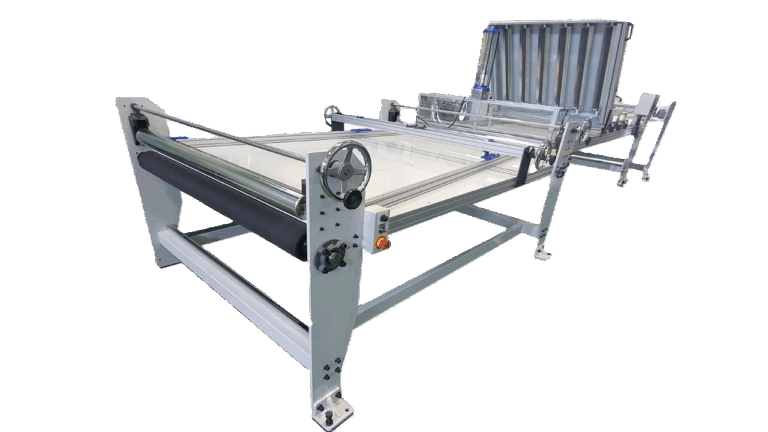

EX-1600 (62″)

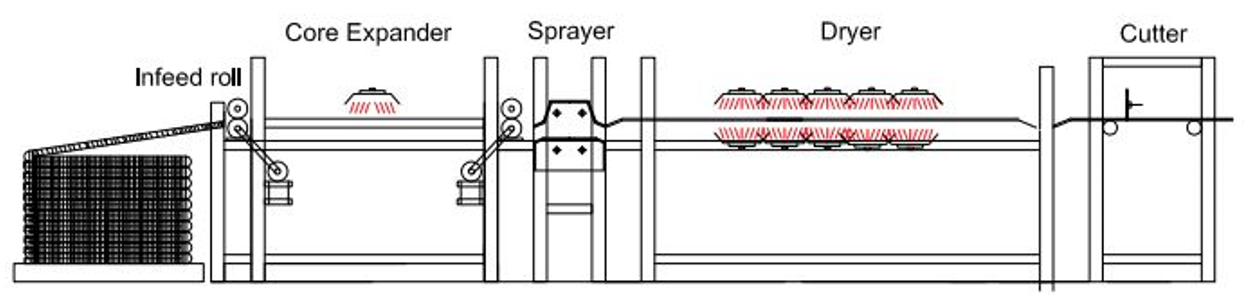

 [Process]  Core feeding ⇒  Expanding ⇒  Spraying ⇒  Heating ⇒ Cutting

General Specifications
  • Working width : 1600mm (62″)
  • Material : Paper honeycomb core
  • Available board thickness : max.50mm (1.96″)
  • Operating speed: max. 5m/min
  • Wide range of options: Sprayer, Rod heating, Infra-red heating etc..
Major Features
  • Minimize core shrinking after final cutting
  • Less electric consumption
  • Custom options available to meet special requirements
Major Benefits
  • Increase the efficiency of the critical daily operating task
  • Reducing manpower, cost and time required each day…
  • Ensuring smooth production start ups each morning

     0. Video Display

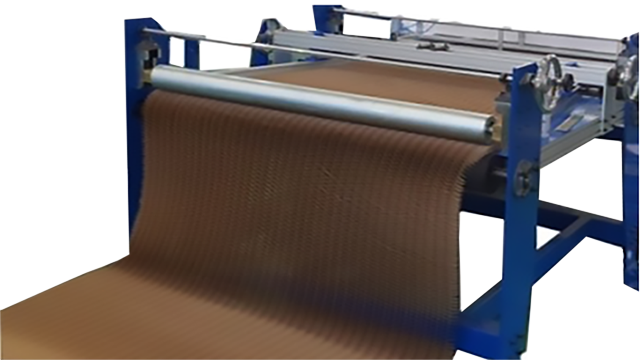

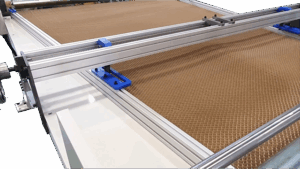

     1. Core Feeding

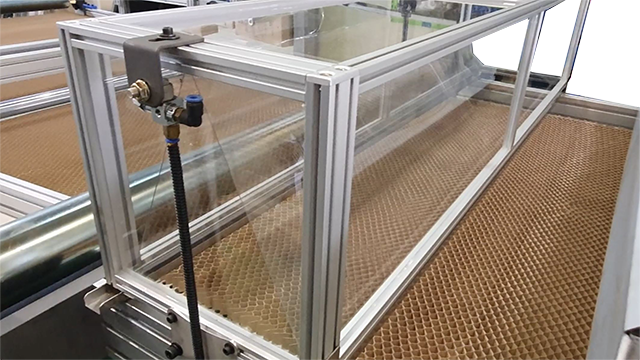

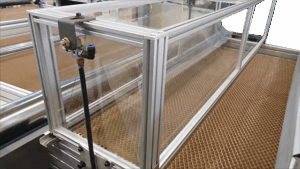

     2. Spraying

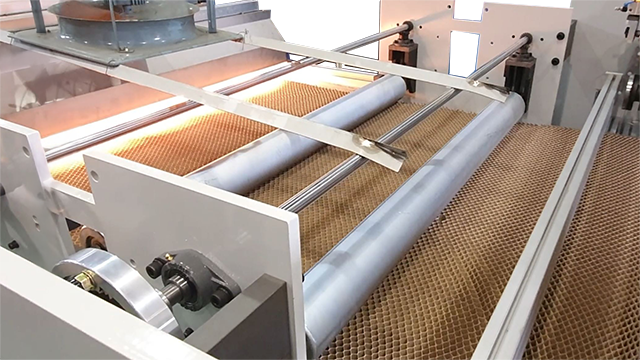

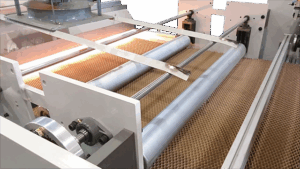

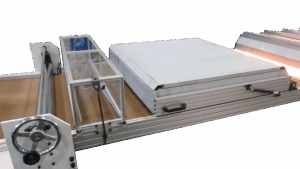

    3. Rod Heating

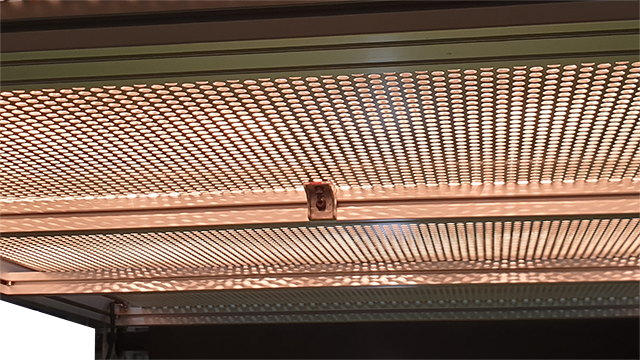

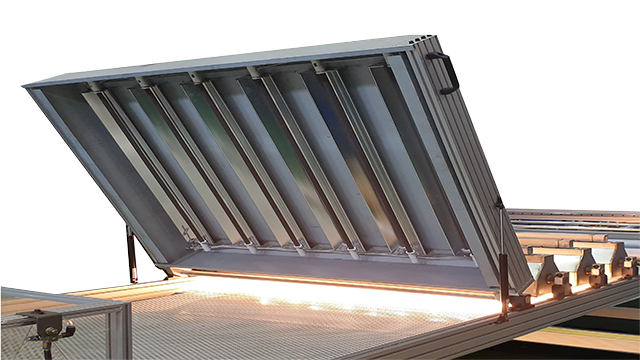

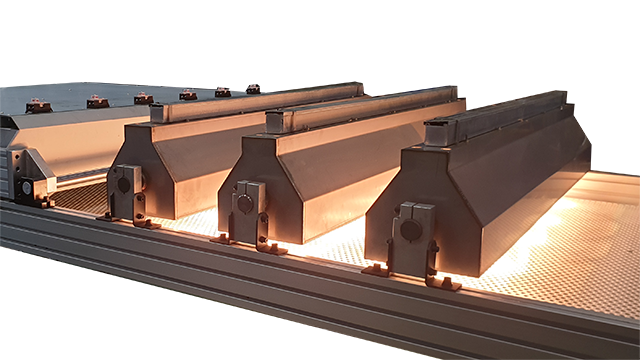

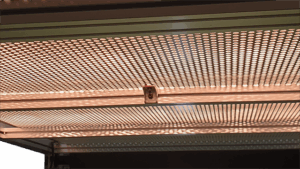

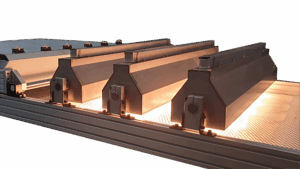

     4. Infra-red Heating

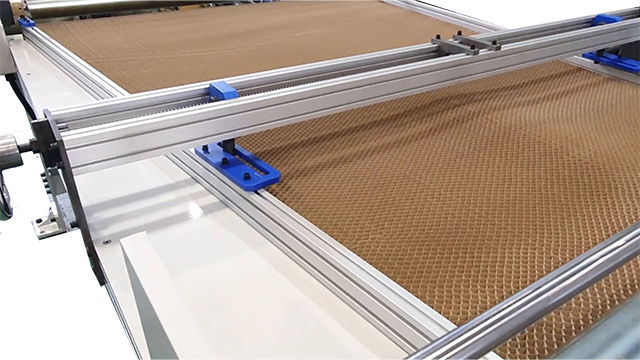

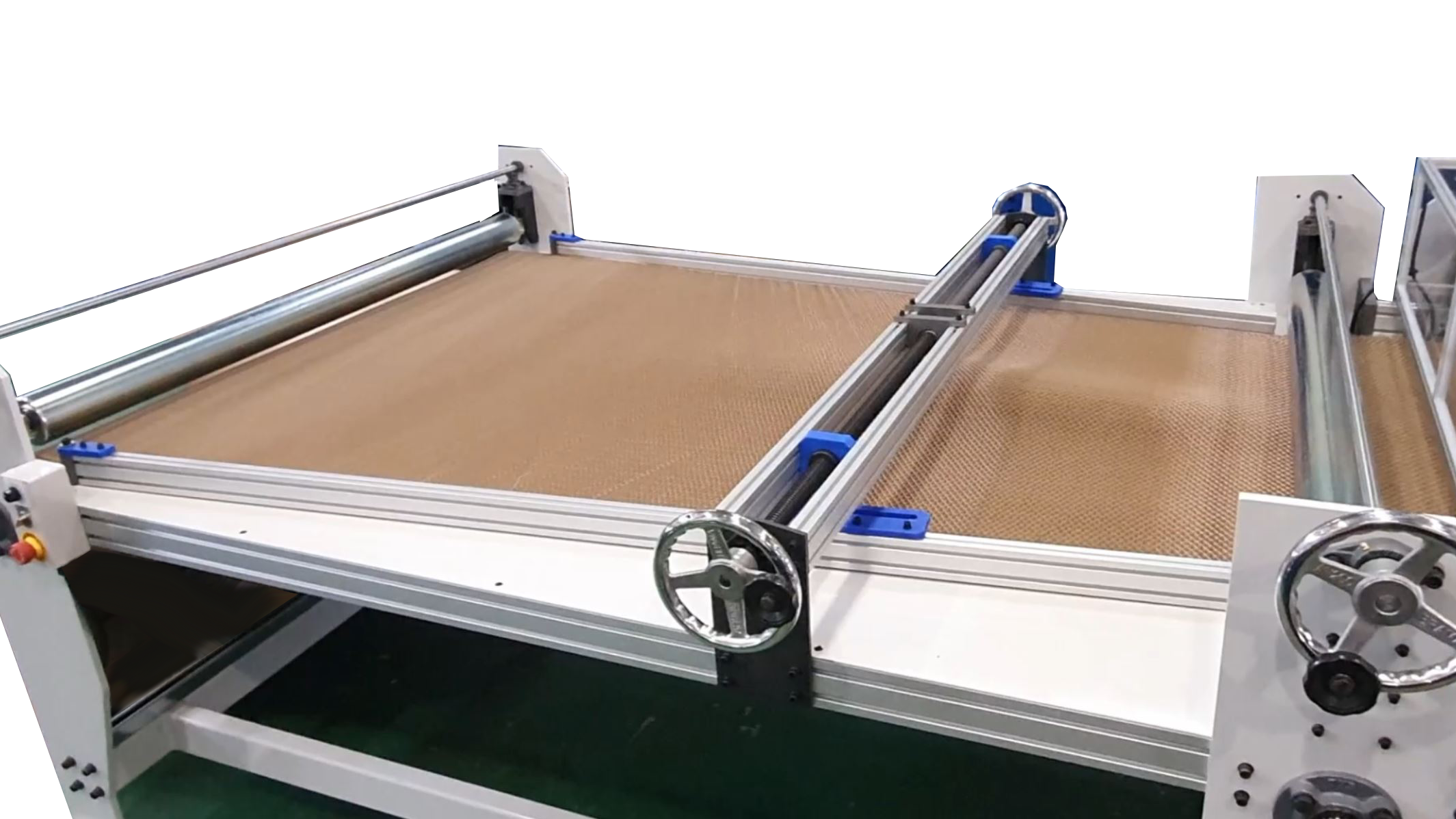

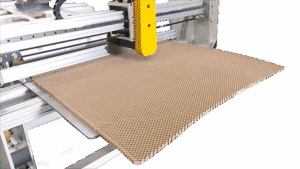

     5. Core Out-feeding

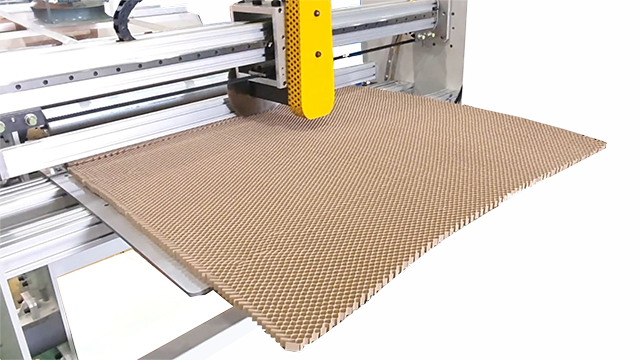

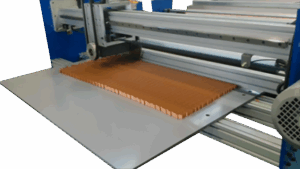

     6. Core Cutting

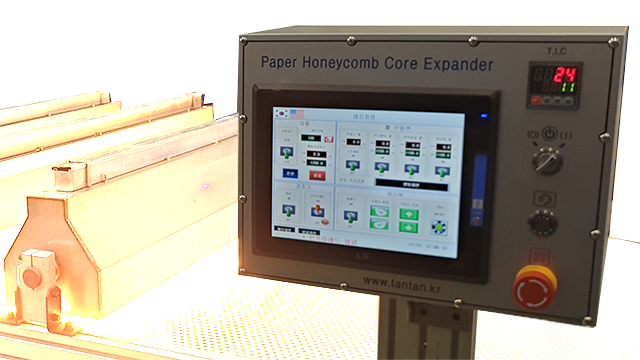

    7. Control
