Paper Honeycomb Laminator
Customized Models from Manual to Automatic …

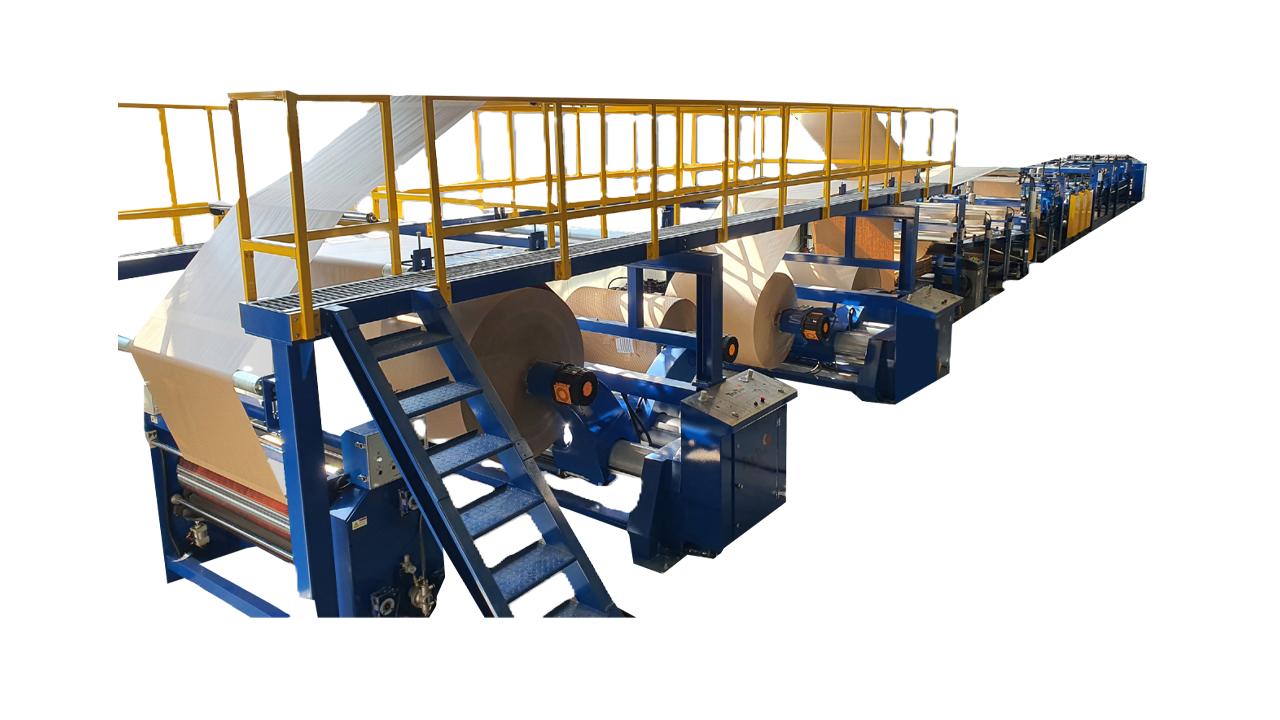

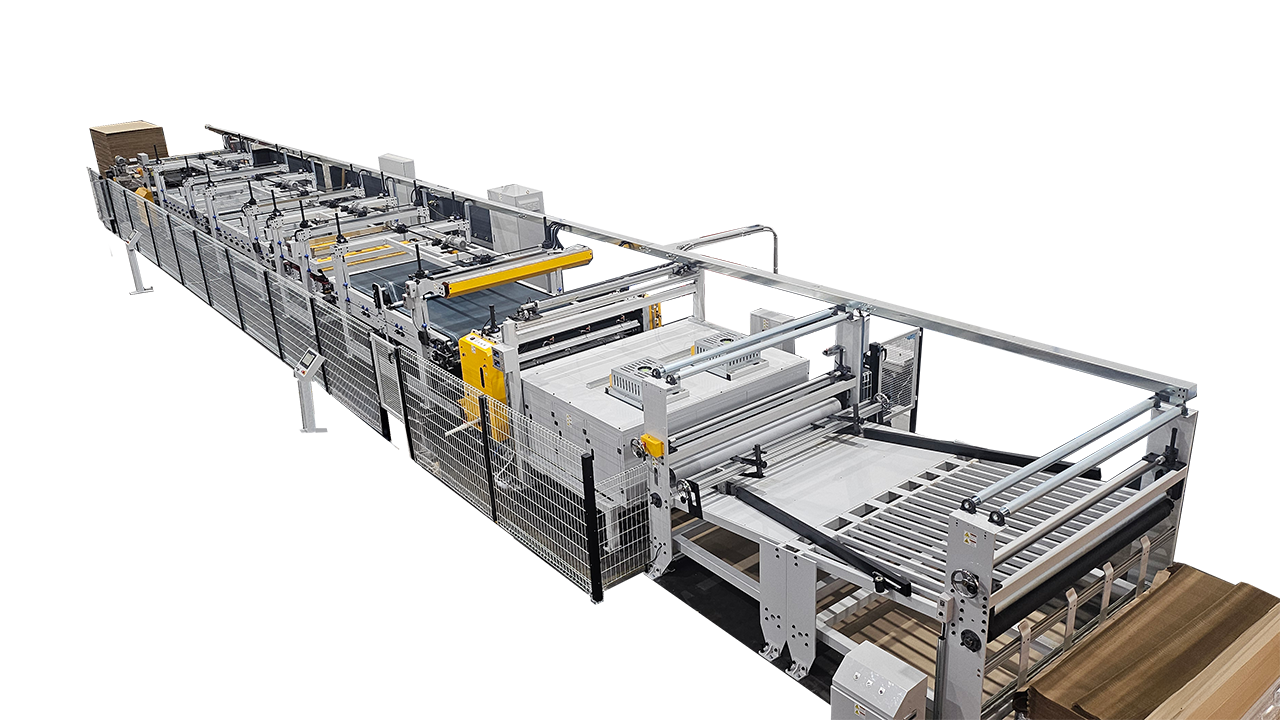

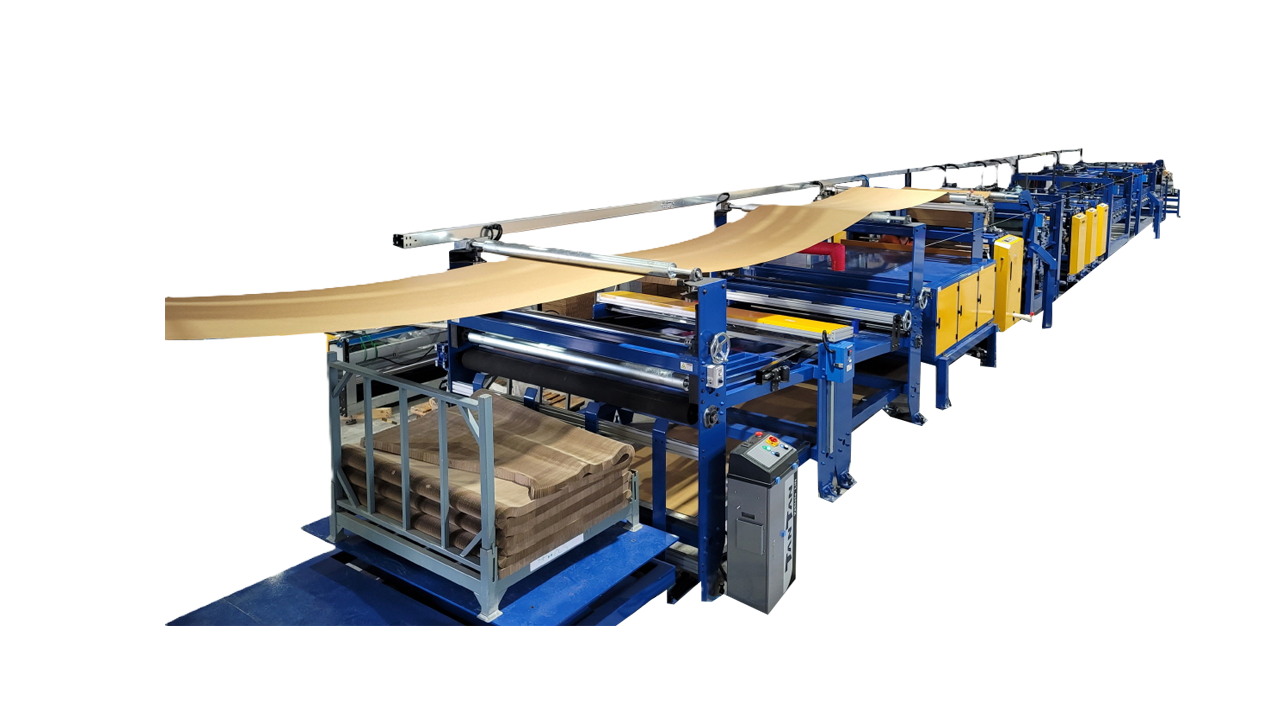

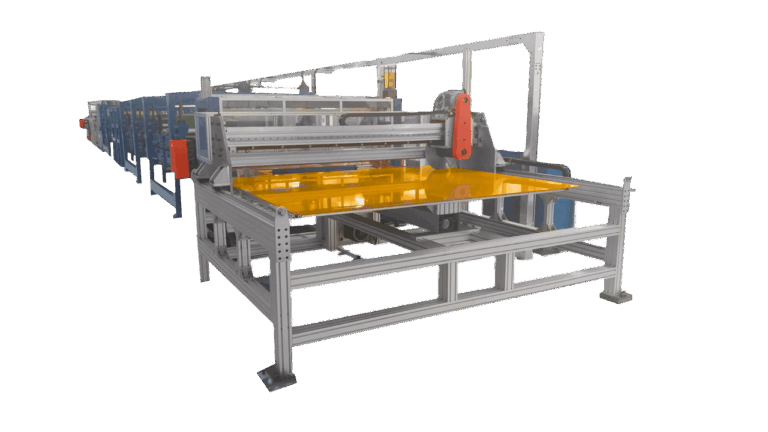

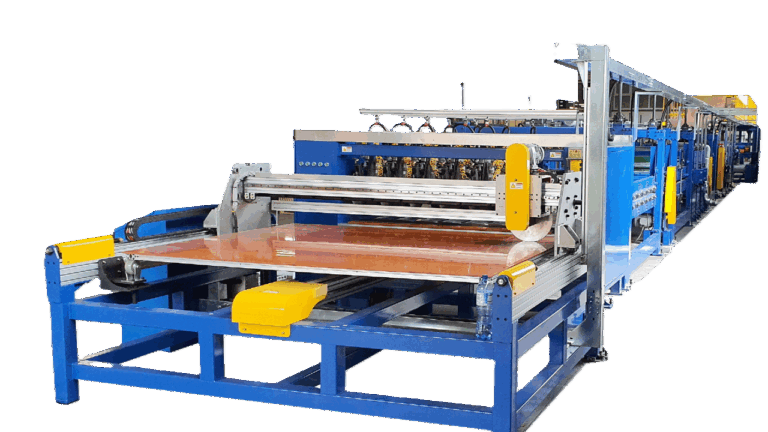

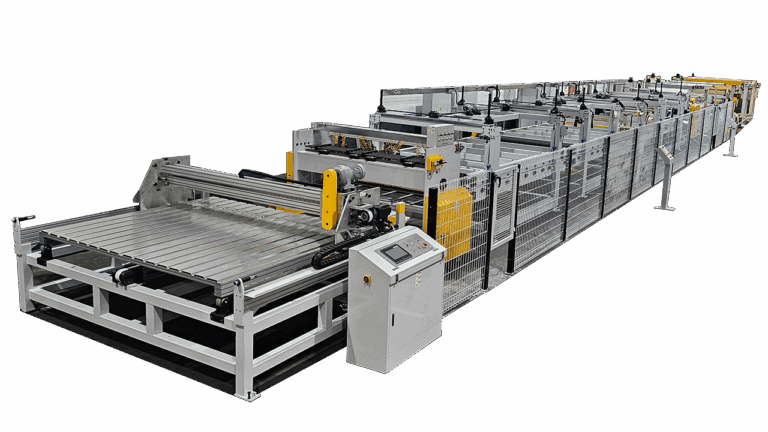

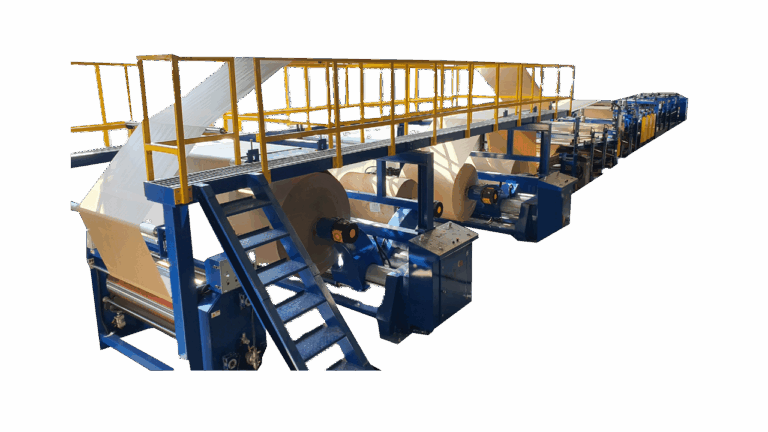

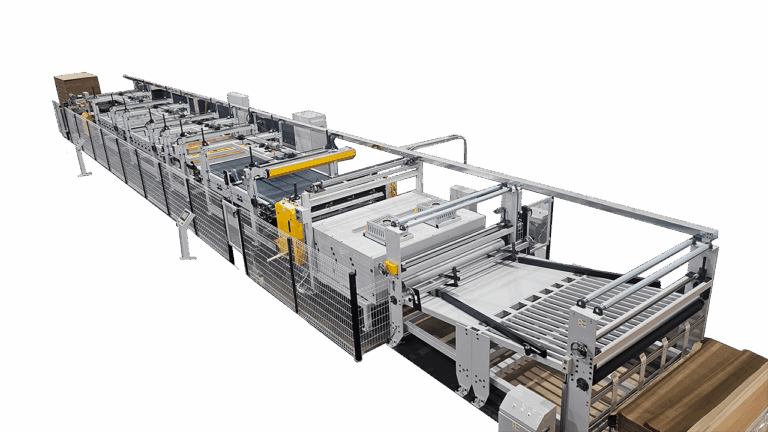

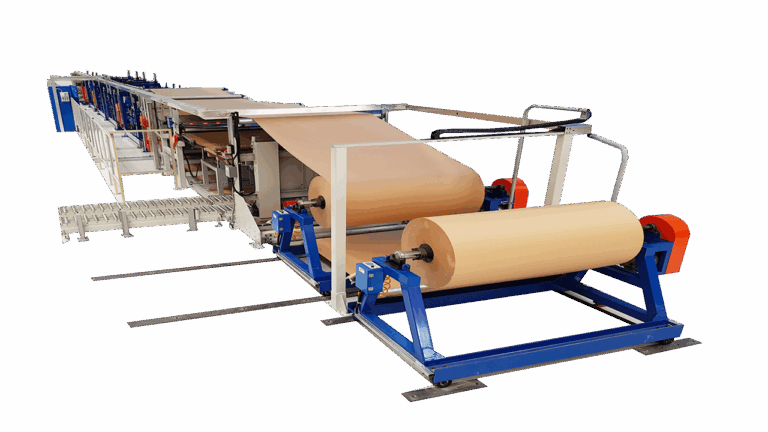

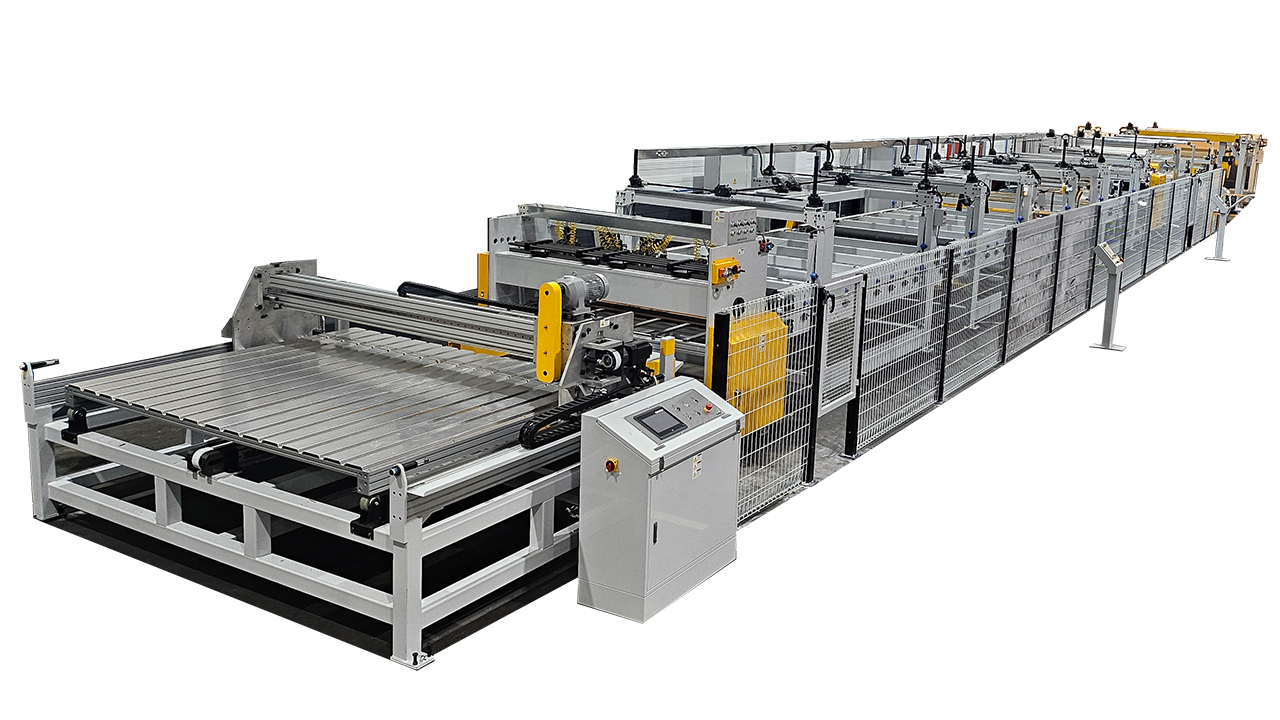

Paper Honeycomb Laminator
HL-1600 / 1800 / 2300 (62″/70″/90″)
General Specifications
- Working width: 1600/1800/2300mm (62″/70″/90″)
- Board thickness : 8-100mm (0.31-3.93″)
- Glue metering system
- Quick glue cleaning system
- Energy saving heating
- Module type of pressing units
- Board cutting up to 300mm (11.8”)

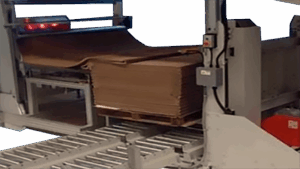

- Wide range of options : Board thickness modifications, Printer, Varnisher(Coater), Board Trimmer, Core Pre-Loader, etc..
Major Features
- Glue metering system
- Quick glue cleaning system
- Energy saving heating
- Module type of pressing units
- Min.Board cutting up to 300mm (11.8”)
- Custom options available to meet special requirements
Process
- Paper Feeding
- Printing
- Coating
- Core Expanding
- Core Gluing
- Laminating
- Heating & Drying
- Board Slitting
- Board Trimming
- Board Cutting

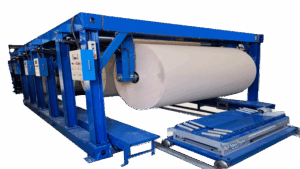

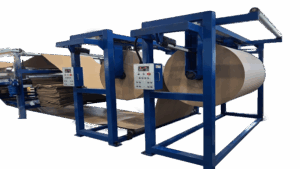

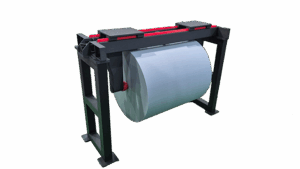

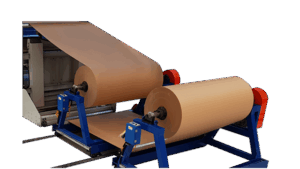

1. Roll Paper Feeding

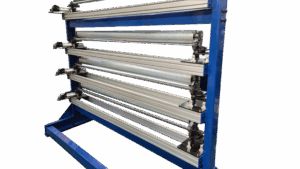

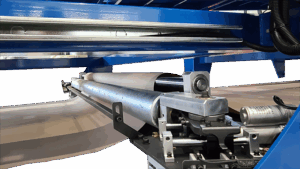

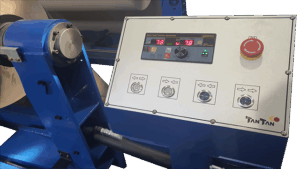

2. Tension Control

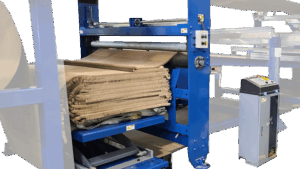

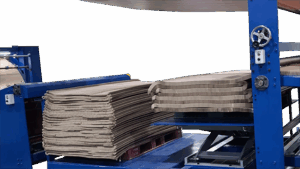

3. Core Feeding

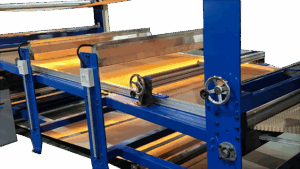

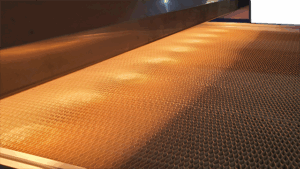

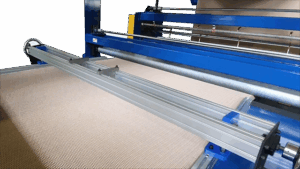

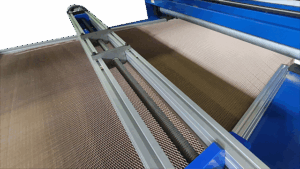

4. Core Expanding

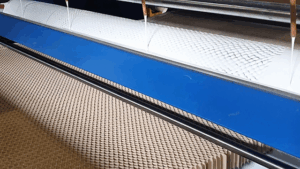

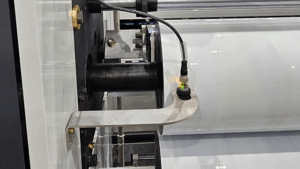

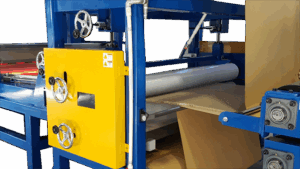

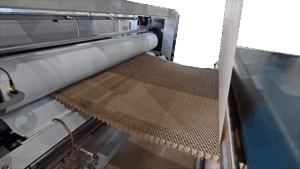

5. Gluing (Laminating Sec.)

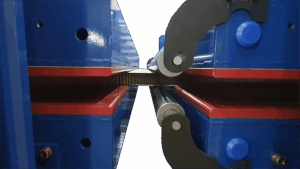

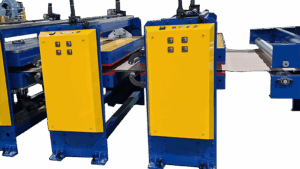

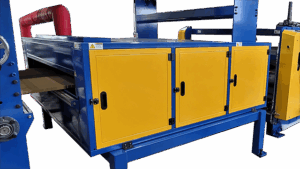

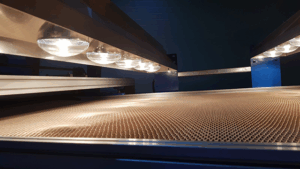

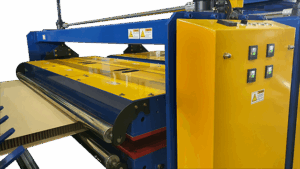

6. Core Heating
7. Board Pressing

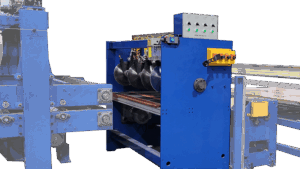

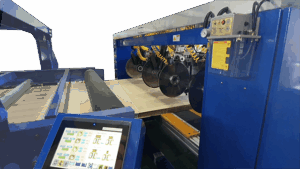

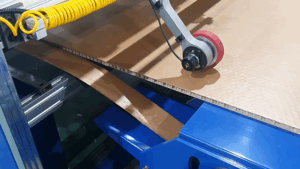

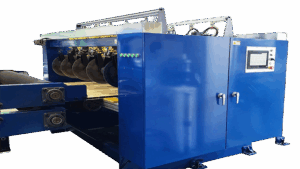

8. Board Slitting / Trimming

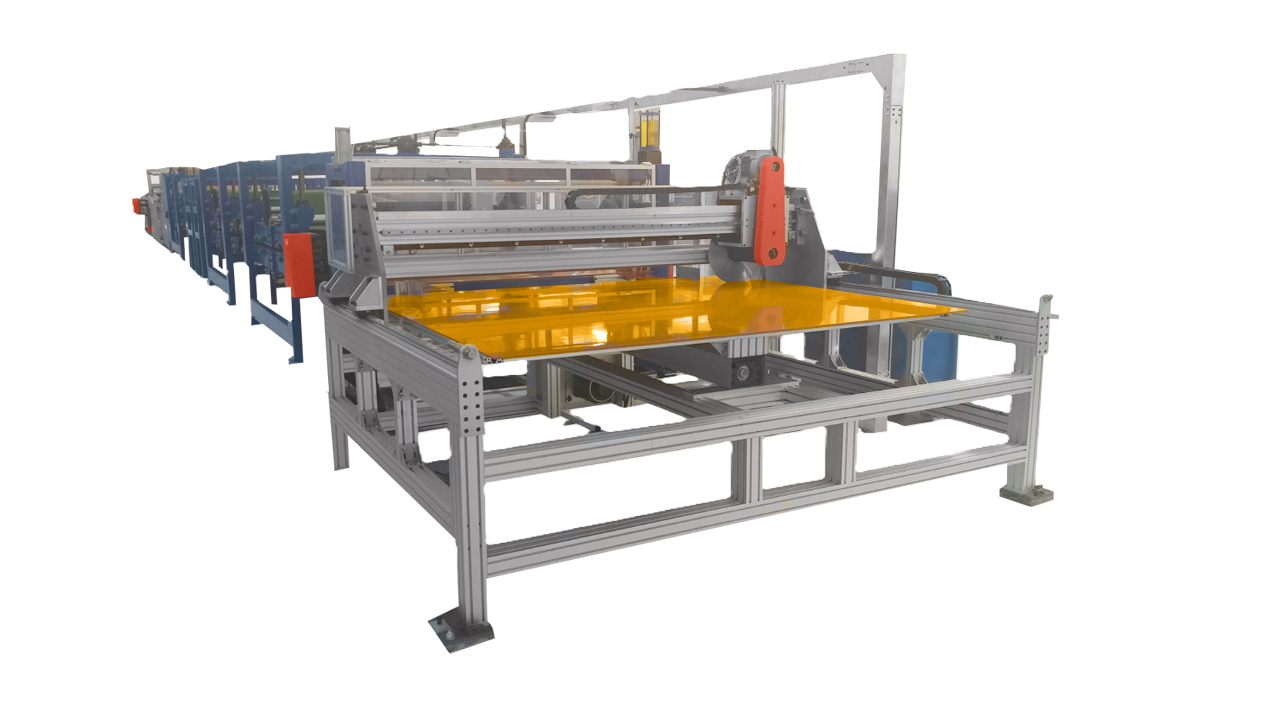

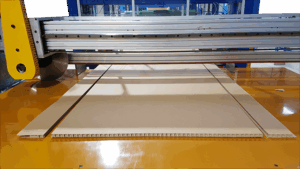

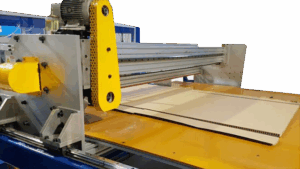

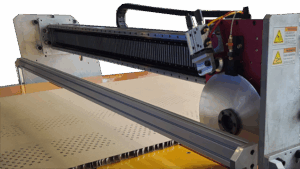

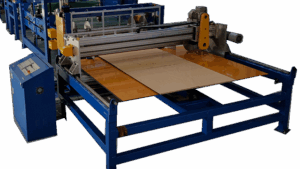

9. Board Cutting

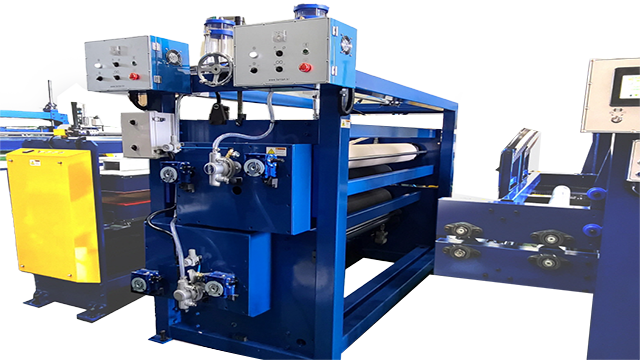

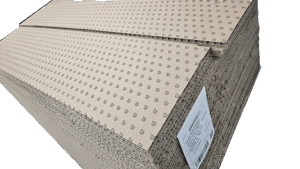

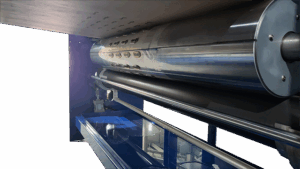

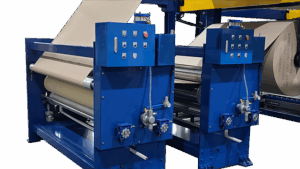

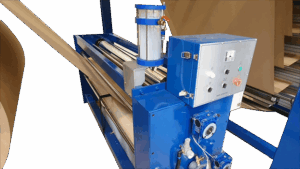

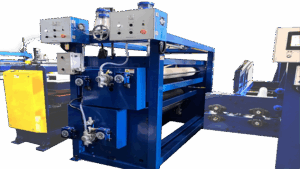

10. Printing / Coating
Would you like to start a HONEYCOMB project with us?
TANTAN‘s innovative design was devised to
- Increase the efficiency of the critical daily operating task
- Reducing manpower, cost and time required each day…
- Ensuring smooth production start ups each morning without delays, etc.
Saving our customers money…
