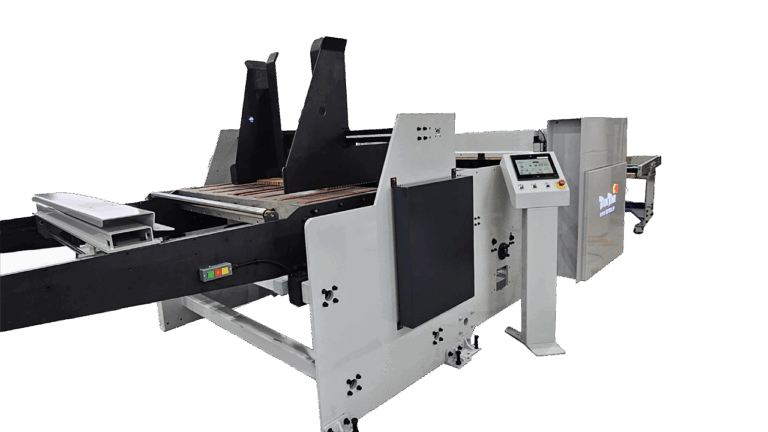

PAPER HONEYCOMB BOARD DIE-PRESS
HD-1600 (62″)

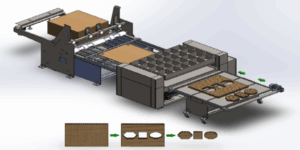

[Process] Board Feeding ⇒ Alignment ⇒ Die-Pressing/Cutting ⇒Delivering
Process
General Specifications
- 3 Dimensional Press & Cutting—all in one machine
- Max. Board Size 1600x1200mm (63 x 47″)
- Max. Daylight : 300mm (11.8″)
- Operating speed: 8 sheets/min (Hydraulic control)
- Slow & Fast mode according to small board to max board
- Custom options available to meet special requirements
Major Benefits
- Increase the efficiency of the critical daily operating task
- Reducing manpower, cost and time required each day…
- Ensuring smooth production start ups each morning
o. Video Display

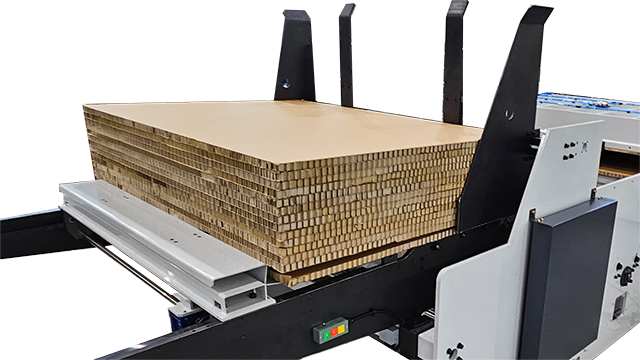

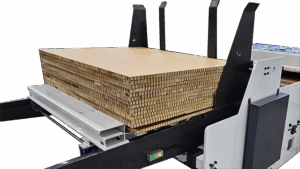

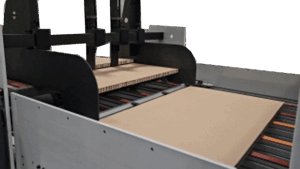

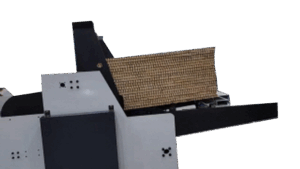

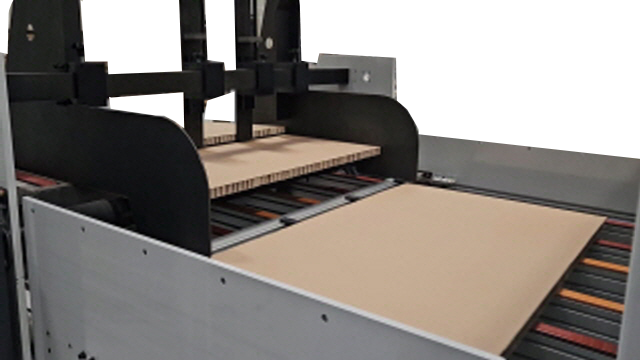

1. Board Feeding
2. Alignment
…

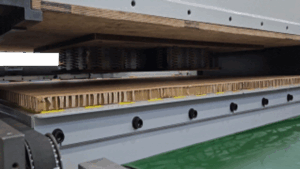

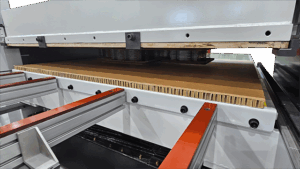

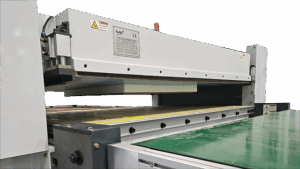

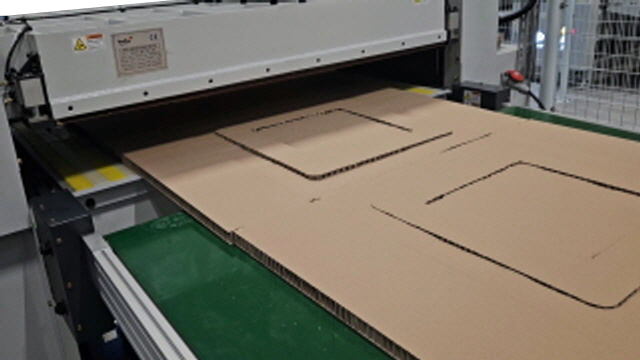

3. Pressing / Cutting
…

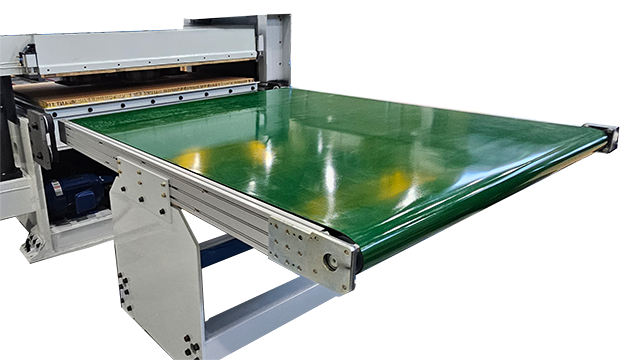

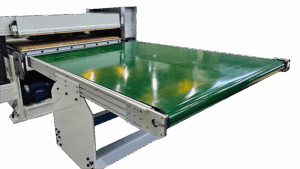

4. Delivering
…

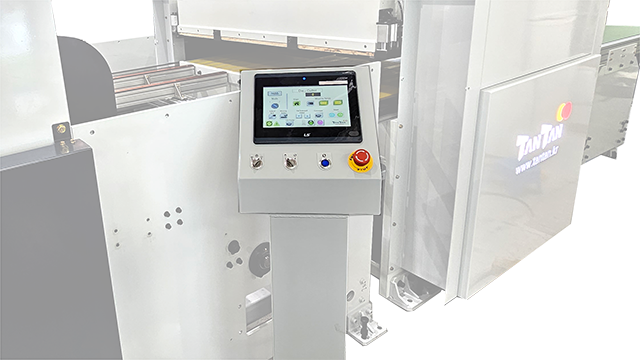

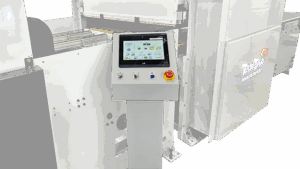

5. Control
…
